COMBI-P3F
Scheda tecnica
Galleria

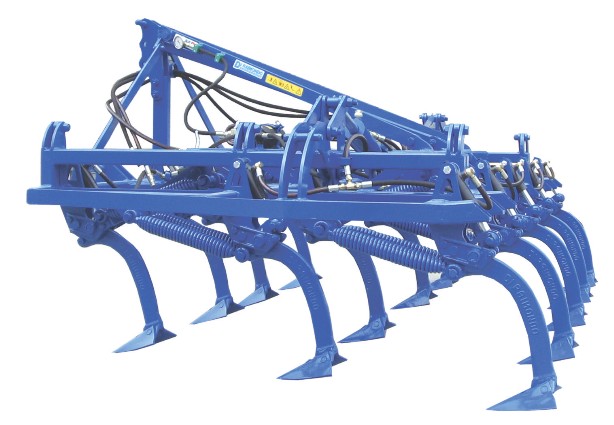

The COMBI-P3F cultivator is a unique implement designed for use with tractors ranging from 90 to 200 HP. It is highly versatile and can operate using either a simple spring-tine system or a combined spring-tine and hydropneumatic system. It is suitable for cultivating loose, medium, tenacious and stony soils, as well as dry and wet soils.
INNOVATIVE FEATURES
The hybrid working system combines spring-tine cultivators and hydropneumatic tillers. It is arranged in three rows with wider spacing to ensure higher working speeds and prevent clogging from crop residues. The NO-STOP safety system enables the working configuration to be quickly restored after overcoming obstacles.Sharp-edged ploughshares break up highly cloddy soils without disrupting the soil's stratigraphy, ensuring optimal working conditions.
Mechanical components are arranged to prevent implement blockage and tractor slippage, thereby enhancing inertia and forward speed while maintaining consistent ground adhesion.
BENEFITS OF THE "DI RAIMONDO" COMBI-P3F CULTIVATOR
The structure is designed to prevent risks and hazards during use, ensuring high operator safety.
The hybrid system provides maximum operator comfort by absorbing and dampening vibrations for a smoother operation.
The dynamic hybrid system results in high energy efficiency, reducing power demand and tractor fuel consumption.
The versatile working system enables exceptional user-friendliness and adaptability to various applications.
Thanks to their ability to enhance soil breakup and aeration, the hybrid system and specially designed working bodies have been shown to improve soil productivity and achieve excellent results.
Significant reductions in maintenance costs are achieved thanks to the high reliability of the structure, which was built using high-strength steel.
The implement's effectiveness and durability guarantees a sound and secure investment, making it perfect for tillage operations.FIELD TEST
It was tested on both medium-type (loam) soils and medium-textured soils containing silt and clay. Thanks to the excellent disturbance action of the hybrid system, the working bodies effectively broke up the soil and fragmented large clods in a single pass. This process also exposed the perennial organs of weeds, leaving them susceptible to atmospheric conditions and deterioration. The tillage results ensured uniform water penetration and excellent soil aeration.
Dati tecnici
| Modello |  Chiusura (TIPO) |  Ingombro Min (CM) |  Interfila (CM) |  Largh.Lavoro (CM) |  Max.Prof.Lavoro (CM) |  Peso (KG) |  Potenza (HP) |
|---|---|---|---|---|---|---|---|
| COMBI-9/13P3F | IDRAULICO | 248 | 357 | 25 | 1400 | 140-160 | |
| COMBI-9/15P3F | IDRAULICO | 248 | 27,5 | 412 | 25 | 1550 | 120-180 |
| COMBI-11/15P3F | IDRAULICO | 302 | 27,5 | 412 | 25 | 1550 | 160-180 |
| COMBI-11/17P3F | IDRAULICO | 302 | 27,5 | 467 | 25 | 1700 | 180 |
| COMBI-11/19P3F | IDRAULICO | 302 | 522 | 25 | 1850 | 180-220 |
Accessori extra
| Attacchi Erpice |
| Ruotini di profondità serie M |
